Franklin Properties Commercial Roof Recover
B&D Roofing Solutions completed a 6,000-square-foot commercial roof recover with partial tear-off for Franklin Properties at 2140 Lawndale Drive in Greensboro, NC, in May 2025.
The existing roofing membrane and insulation were removed down to the original gravel roof, and abandoned rooftop equipment and associated ductwork were removed. The remaining roof surface was prepared for installation of new mechanically fastened insulation and a mechanically attached Carlisle 60-mil white TPO roofing system.
To improve drainage, new roof crickets were installed near the rear scupper locations, along with two new 4-inch roof drains. The project also included perimeter termination and flashing details to complete the roofing system.
Project Overview
Location: Greensboro, NC
Roof Area: 6,000 SF
Roof System: Mechanically Attached Carlisle 60-Mil TPO
Project Type: Commercial Roof Recover with Partial Tear-Off
Completed: May 2025
Warranty: 20-Year Carlisle Membrane Material Warranty
Roof Recover Scope
The project involved a 6,000-square-foot commercial roof recover with partial tear-off at Franklin Properties, located at 2140 Lawndale Drive in Greensboro, North Carolina.

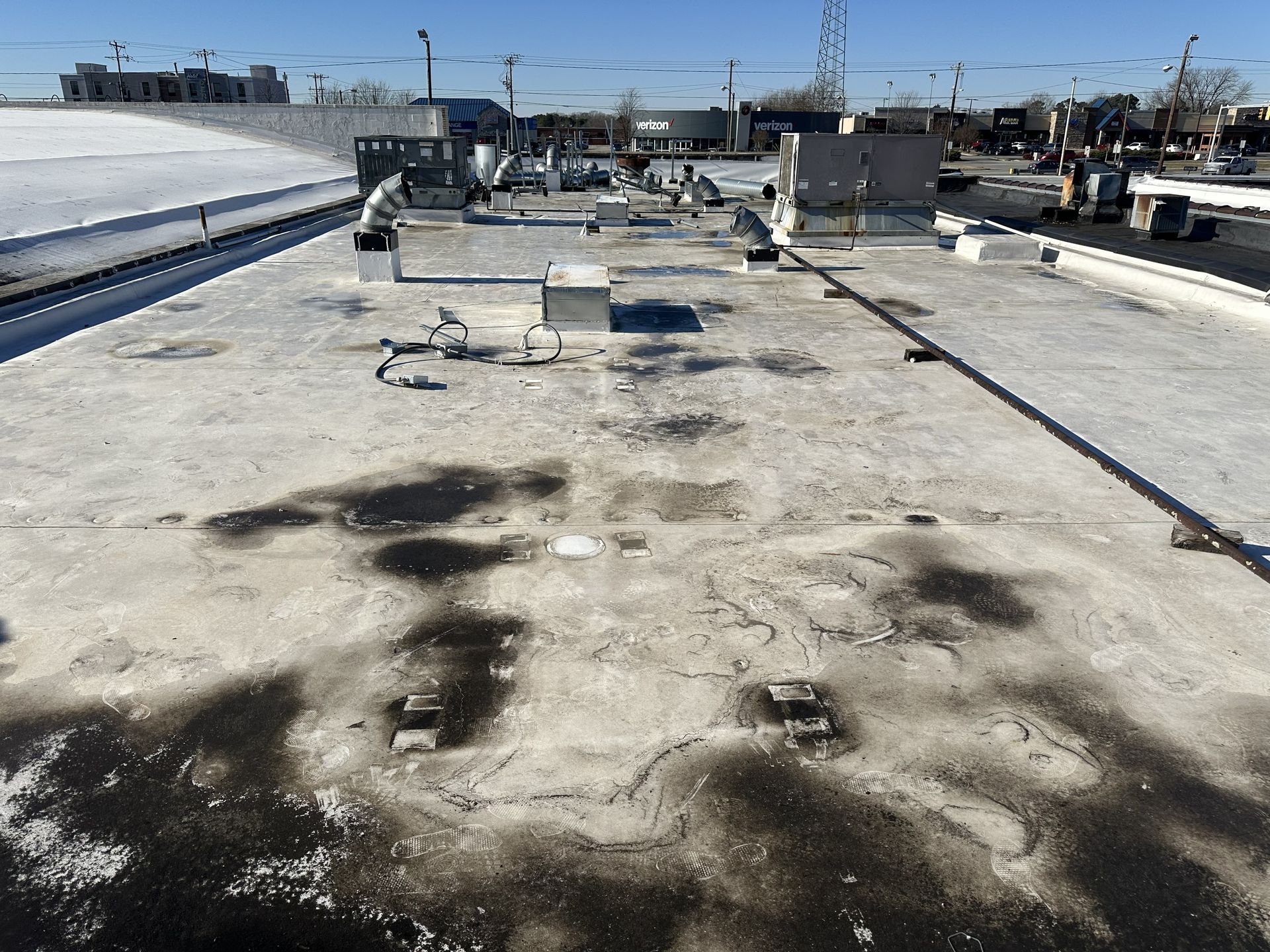

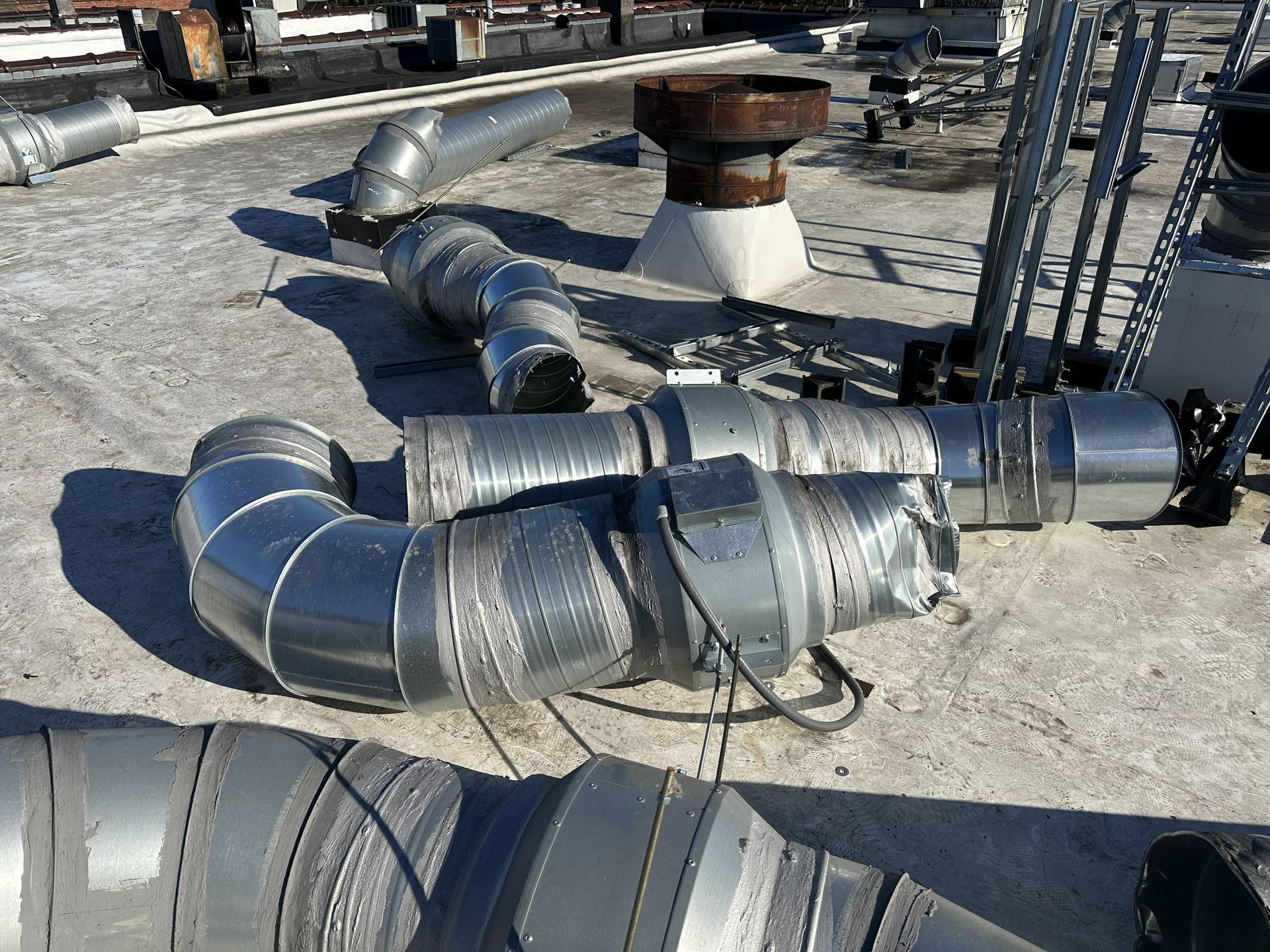

Partial Tear-Off and Roof Preparation: The existing roofing membrane and insulation were removed down to the original gravel roofing system. Loose gravel was cleared from the roof surface, and abandoned rooftop mechanical equipment and associated ductwork were removed to prepare the roof for the new installation.

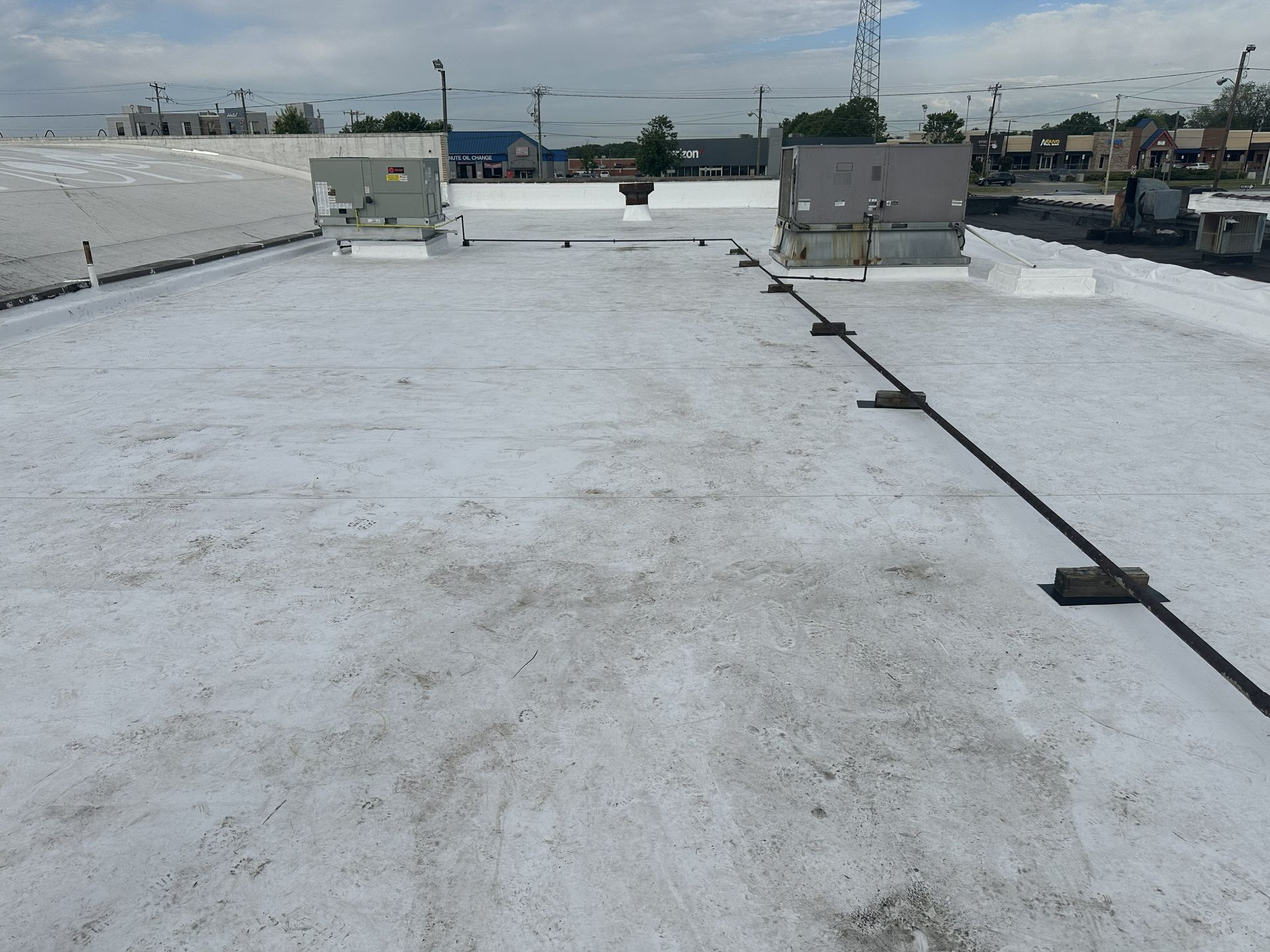

Roof Insulation and TPO Installation: New roof insulation was mechanically fastened over the prepared existing roofing system. A mechanically attached Carlisle 60-mil white TPO roofing membrane was then installed, including the necessary membrane accessories and components.
Drainage Improvements: New roof crickets were constructed near the rear scupper locations to improve drainage. The project also included installation of two new 4-inch roof drains, with associated PVC drainage plumbing completed under separate change orders.
Perimeter and Roof Details: The roofing scope included perimeter termination bars, membrane flashing, and detailing around roof penetrations and transitions. The completed project provided a new single-ply TPO roofing system while retaining the original gravel roof beneath the new assembly.
Manufacturer Warranty
The completed project received a 20-year Carlisle Membrane Material Warranty, covering qualifying manufacturing defects and premature membrane deterioration due to weathering, subject to the manufacturer's warranty terms and conditions.
